Handheld Transducerized Screwdriver TTD&TTC

Torque Range：0.14-200Nm

Danikor handheld transducerized smart screwdriver TTD&TTC provides high-quality tightenings with its advanced features.for process reliability and efficiency with smart fastening strategies and high precision torque accuracy. The screwdriver supports Industry 4.0. The transducerized tool features a built-in sensor that is continually measuring torque in real-time and feeding data back into the system. The error-proofing system eliminates manufacturing risks and product defects. Easily program the controller with fastening workflows and torque tolerances for each fastener in the sequence. The smart screwdriver system provides capabilities to record and store the torque & fastening data.

Request a Quote

Product Advantages

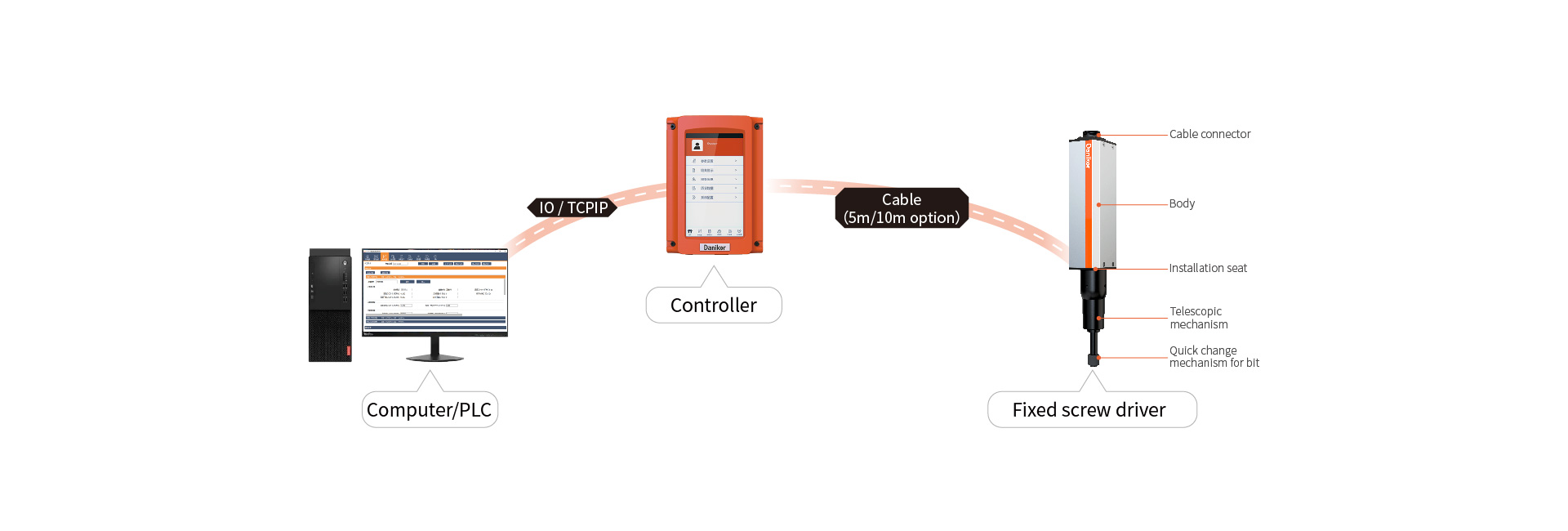

Product Structure

Product Parameters

Model	Max torque /Nm	Max speed /rpm	Accuracy	Dimension /mm	Weight /kg	Free range of head/mm	Bit quick connector	Screw driver controller	Screw driver cable
PTC-ASF-4500M-0-HM0-000	0.05-0.45	1500	±2.5%	135×46×57	0.51	-	HM4	OPT-STC-C1-V1 -50W	5m/10m/15m Straight or Angle optional
PTC-ASF-0009N-0-H10-000	0.09-0.9	1500		162.6×46×57	0.81	-	Hex 1/4"	OPT-STC-C1-V1 -100W
PTC-ASF-0009N-0-H10-015(L)	0.09-0.9	1500		206×46×57	0.78	15	Hex 1/4"
PTC-ASF-0030N-0-H10-000	0.5-3	950		236×46×57	1.35	-	Hex 1/4"
PTC-ASF-0030N-0-H10-030(L)	0.5-3	950		302×46×57	1.32	30	Hex 1/4"
PTC-ASF-0065N-0-H10-000	1.5-6.5	450		236×46×57	1.35	-	Hex 1/4"
PTC-ASF-0065N-0-H10-030(L)	1.5-6.5	450		302×46×57	1.36	30	Hex 1/4"
PTC-ASF-0070N-0-H10-030(L)	1-7	830		361×70×82	2.99	30	Hex 1/4"	OPT-STC-C1-V1 -200W
PTC-ASF-0120N-0-H10-030(L)	4-12	900		361×70×82	3.42	30	Hex 1/4"	OPT-STC-C1-V1 -400W
PTC-ASF-0180N-0-S20-030(L)	3-18	180		321×46×57	1.66	30	Square 3/8"	OPT-STC-C1-V1 -100W
PTC-ASF-0270N-0-S20-030(L)	5-27	450		361×70×82	3.46	30	Square 3/8"	OPT-STC-C1-V1 -400W
PTC-ASF-0520N-0-S30-050(L)	12-52	240		450×70×82	4.51	50	Square 1/2"
PTC-ASF-1050N-0-S30-050(L)	20-105	230		498×100×108	9.69	50	Square 1/2"
